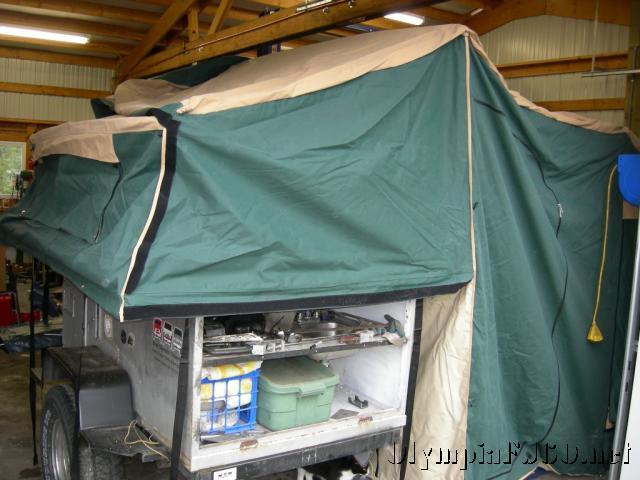

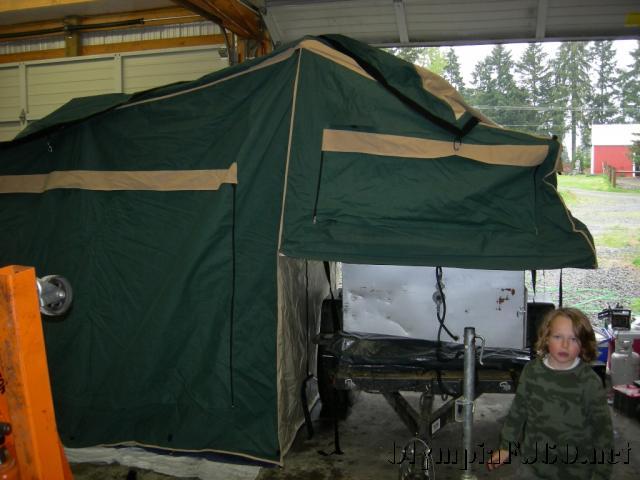

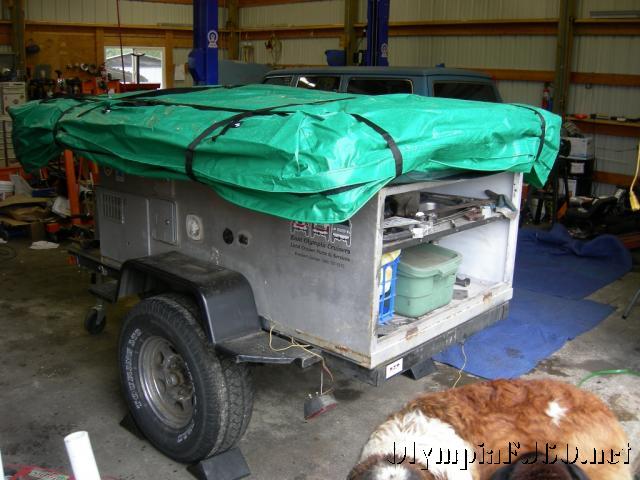

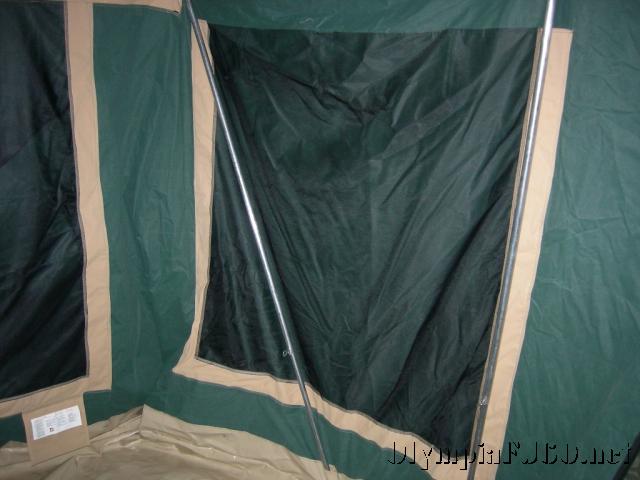

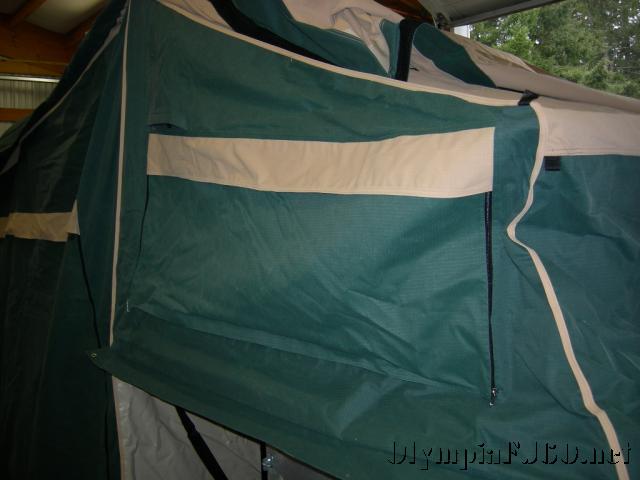

The trailer tent has arrived. I set it up quickly or some pictures and get a first impression. Of course it was raining so I had to set it up in the shop. I was not able to open the annex and install the walls but the main tent fit (just barely) and I like what I see so far. Well made with heavy sippers and double seams. I have some questions on the travel cover but everything else looks pretty good. Now I just have to figure out how I’m going to mount it to the trailer. I think a bit of extra bracketry is required and will have to pack the tent back up and flip it over to get a better idea.  I will get more pictures one I get it permanently mounted and can set it up outside.

trailer_tent_02

trailer_tent_01

trailer_tent_03

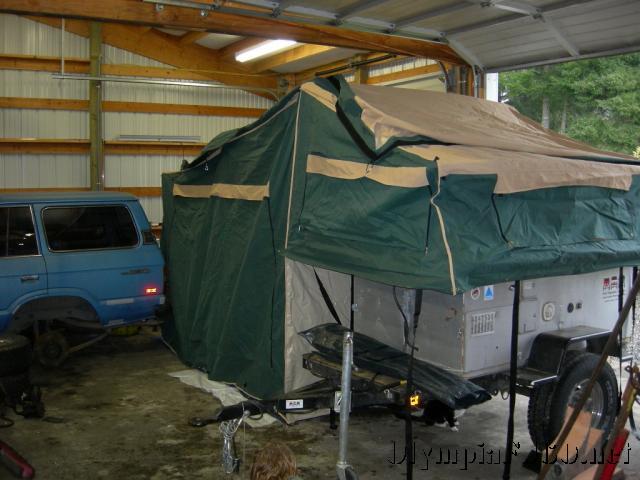

trailer_tent_04

trailer_tent_05

trailer_tent_06

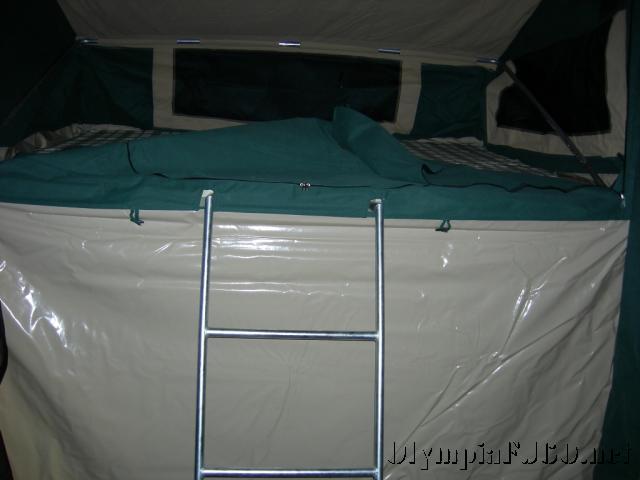

trailer_tent_07

trailer_tent_08

trailer_tent_09

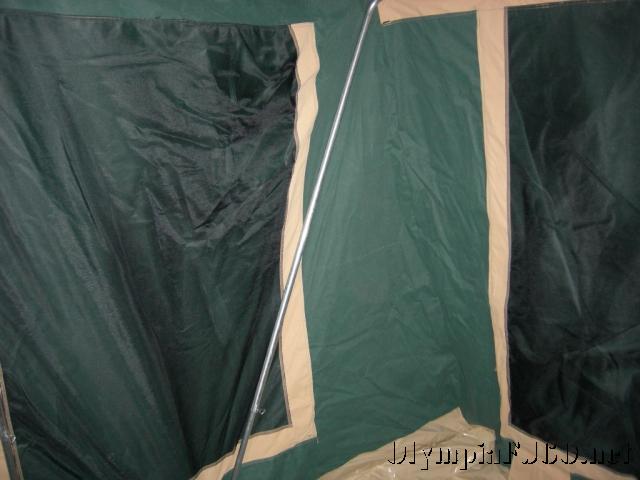

trailer_tent_10

trailer_tent_11

trailer_tent_12

trailer_tent_13

My minimum order is 10, so I think 5 people and I will have to nearly full price. If I can get 8 or more, I will be able to give about 20% discount I think.  If you are interested in being part of the initial order please let me know by using the contact form.

Still waiting on ocean shipping rates. Also looking into the need for fire retardant fabric before I announce a price.

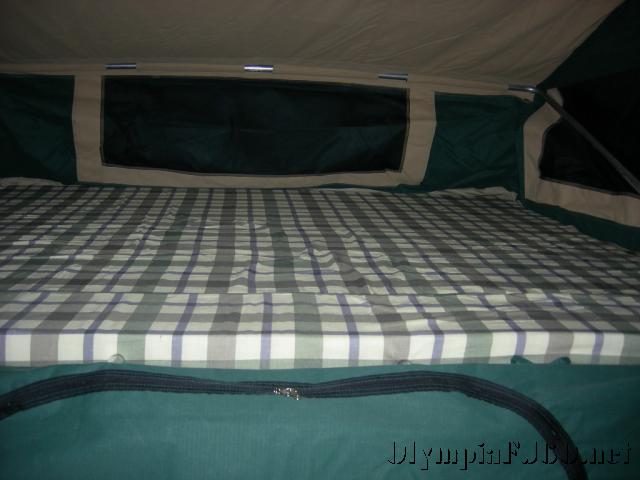

The size of the tent closed is 90″ (~7.5′) long, 66″ (5.5′) wide and between 6″-12″ tall. The width was selected because that is the width of my trailer outside fender to outside fender. I believe the M416 is roughly the same. The base is designed to sit 54″ off the ground. Open, the tent is 17′ wide and 15′ long (7.5′ each for main room and awning). The peak is 8′. The tent fabric is 10oz rip stop poly cotton canvas and the floor is 13oz PVC. Polls and ladder are steel. The base is 3/4″ marine grade plywood with a metal frame under for added support. There are two hatch doors in the base for easy access to trailer storage once setup. There is a 3″ foam mattress. The entire tent weighs roughly 350 lbs.

I am still working on the mounting. I am thinking of offering a mounting frame at additional expense or having the customer provide their own mounting method. The frame would fit customers trailer and have hinges, latches and struts.

4 thoughts on “Off-road Tent Trailer Build, Part3

  1. Please email back asap with the price on the tent. I am interested in one and have a trailer picked out for it. I need to let the guy know soon if I am going to buy it or not.

  2. Eric, I was never able to get enough initial interest to order the first 10. Other projects have taken front burner but I hope to get back to this at some point. Sorry, I know how hard it is to find a suitable, affordable option in the US.
